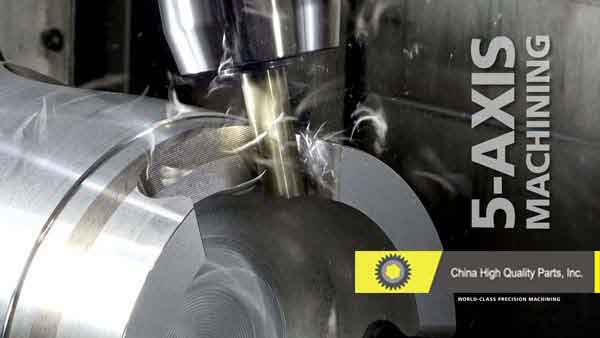

China High Quality Parts conquers complex part manufacturing with state-of-the-art 5-axis CNC machining, backed by decades of experience and unmatched creativity. The 5-axis platform cuts part geometry and complex shapes unachievable by other machining methods, due to additional axes and the exceptional mobility of workpiece to tool rotational axes. This enhanced 6-sided machining capability increases accuracy by combining several standalone operations, significantly reducing part handling and multiple clamping phases during the process. The spindle head operates in closer proximity to the workpiece, allowing shorter cutting tools with less vibration and deflection, higher cutting speeds, tighter tool moves, and improved surface finishing capability.

Cost savings is another huge benefit of 5-axis technology. Consolidating 3-axis machining and other linear axes operations into a single set-up increases production throughput while reducing cycle time, costly work fixtures, and overall waste. It provides a more efficient and economical solution with faster lead time and production turnaround with outstanding quality.

Whether you seek cost reduction, complex parts machining, parts that require extreme tolerances, or all, China High Quality Parts is your world-class precision 5-axis machine shop!

Machining Capabilities Summary

Part Types:

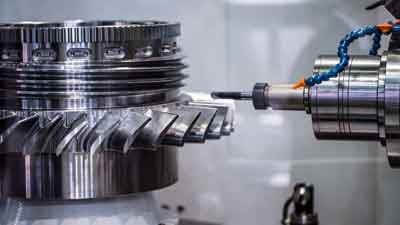

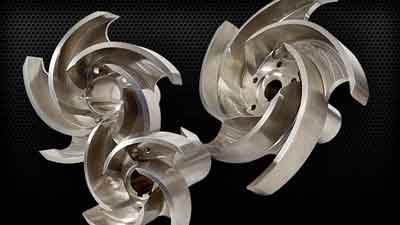

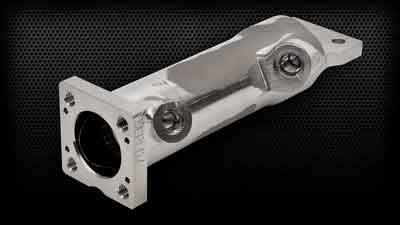

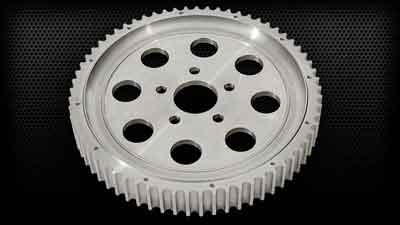

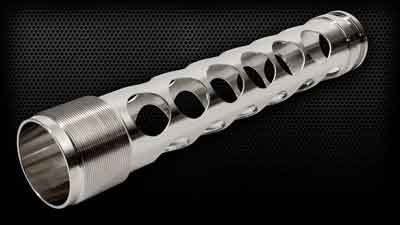

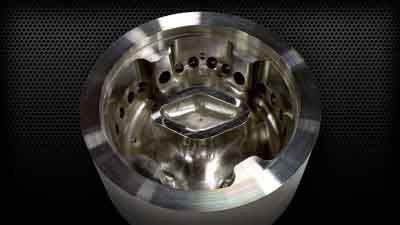

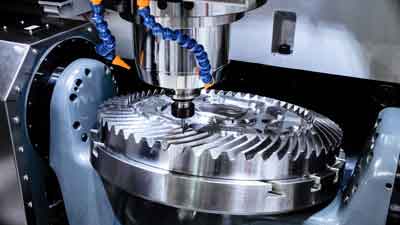

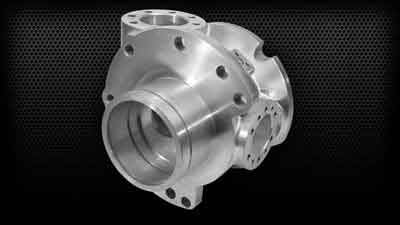

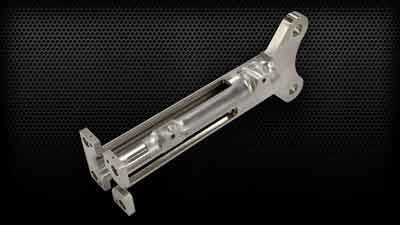

Impellers, turbines, eccentric axis, multifaceted, irregular, convex and concave parts

Part Size (work envelope):
27.5” x 120”

Metal Types:
All standard metals, aluminum, armor plate, beryllium, brass, bronze, chromium, copper, gammalloy, Hastelloy, Incoloy, Inconel, Invar, manganese, molybdenum, Monel, nickel, Nitralloy, platinum, powdered metals, stainless steel, Stellite, titanium, Waspaloy, zinc, and many other superalloys

Material Types:
Castings, forgings, fabricated weldments, billets, and bar stock

5-Axis Processes:
Boring, broaching, counterboring, countersinking, cutting, drilling, facing, gear hobbing, internal forming, knurling, milling, parting, pocketing, profiling, reaming, spline, tapping, threading (external, internal), turning (contour, form, taper, straight), and thread milling

Industries Served:
Aerospace, Defense, Food Processing, Heavy Equipment, Medical Equipment, Military, Mining, Oil & Gas, Power Generation, and Transportation

Machine Brands:
DMG Mori and Mazak - Please refer to our Equipment List for specific 5-axis information and capabilities.

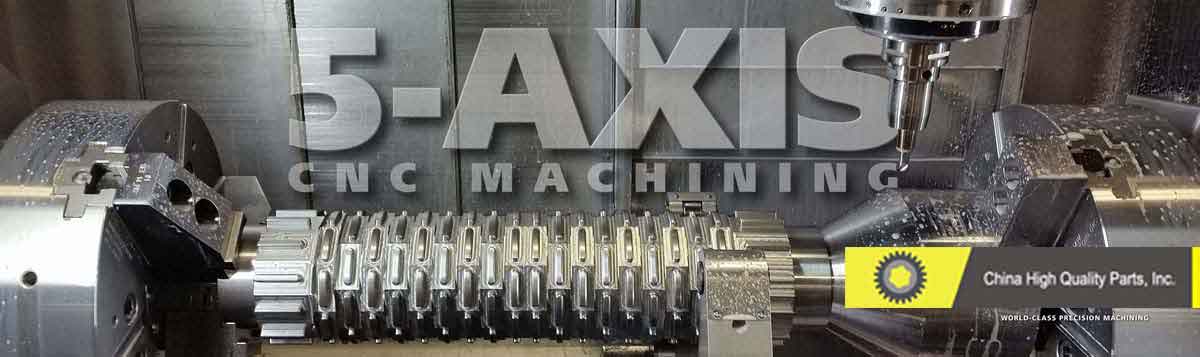

5-Axis CNC Machine Overview

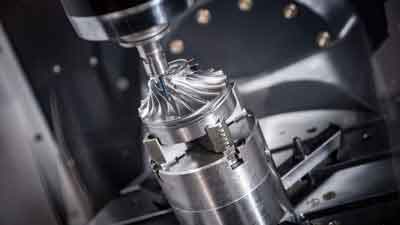

A 5-axis machining center has a variable speed tool spindle head with a multidirectional rotary axes orientation. Raw material clamps into an indexing chuck or to a table. The spindle head assembly moves along the travel columns in unison with the chuck or index table to precisely maneuver the workpiece and the cutting tool to achieve the proper cutting path required for removing material. 5-axis machines offer single setups, infinite geometry cutting, excellent chip management, longer tool life, repeatable manufacturing, and the speed of simultaneous 5-axis high precision machining. Like standard milling and turning types of machines, this is a subtractive manufacturing process.

5-Axis Machine Anatomy

Rotary Spindle Head - Variable speed spindle holds rotating cutting tool which travels on the Y-axis (front to back) and rotates on the B-axis
Cutting Tool - Machine tools cut material from the workpiece to form a part - subtractive manufacturing
Traveling Columns - The Z-axis (left to right) and X-axis (top to bottom) columns the rotary spindle head and tooling travel upon
Main Spindle - Main chuck holding workpiece which rotates on the C-axis up to 2,500 RPMs and able to travel on Z-axis
Sub-Spindle - Secondary chuck holding workpiece which revolves on the C-axis up to 2,500 RPMs and able to move on Z-axis

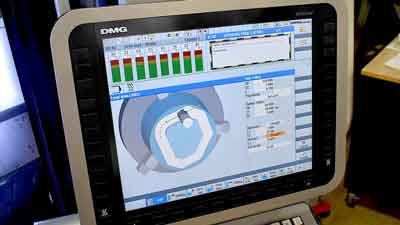

CNC Control Panel - The interface a machinist uses to program and control how a computer numerical control machine operates
